RADIATOR 1 YEAR WARRANTY
DR-AU-2904-002-AT
Aluminum Tank/ Core Radiator - No Frame - No PTO Hole. For Plastic Tank/ Aluminum Core Radiator - No Frame - No PTO Hole, Live Chat or Call us at (800) 661-1117 to order DR-AU-2904-002-PT.
DR-AU-2904-P-002-AT
Aluminum Tank/ Core Radiator - No Frame - With PTO Hole. For Plastic Tank/ Aluminum Core Radiator - No Frame - With PTO Hole, Live Chat or Call us at (800) 661-1117 to order DR-AU-2904-P-002-PT.
DR-BL-2000-002-B-PT
Plastic Tank/ Aluminum Core Radiator - No Frame - With Oil Cooler - With bottom mounts that use SCREWS.
DR-BL-2001-002-PT
Plastic Tank/ Aluminum Core Radiator - No Frame - With additional Ø1” [25.4mm] OD Connection (Driver Side bottom Tank).
DR-BL-2004-002-B-PT
Plastic Tank/ Aluminum Core Radiator - No Frame - With Oil Cooler - With bottom mounts that use BOLTS.
DR-CG-2300-002-B-PT
Plastic Tank/ Aluminum Core Radiator - No Frame - With Oil Cooler (Passenger Side - Transmission Oil Cooler with 1 1/16” ORB Fittings on 18” [457.2mm] centers) - With ½” Connection (Passenger Side top corner), Heater Return Connection and Plug, and ¾” NPT Low Coolant Sensor Fitting.
DR-CG-2300-002-PT
Plastic Tank/ Aluminum Core Radiator - No Frame - No Oil Cooler - With ½” Connection (Passenger Side top corner), Heater Return Connection and Plug, and ¾” NPT Low Coolant Sensor Fitting.
DR-CG-2301-002-B-PT
Plastic Tank/ Aluminum Core Radiator - No Frame - With Oil Coolers (Driver Side - Engine Oil Cooler with ½“ Quick Connect Fittings on 10” [254.0mm] centers and Passenger Side - Transmission Oil Cooler with 1 1/16” ORB Fittings on 18” [457.2mm] centers) - With Filler Neck (Passenger Side top corner), 1/8” NPT Low Coolant Sensor Fitting, and ¾” NPT Low Coolant Sensor Fitting.
DR-CG-2302-002-B-PT
Plastic Tank/ Aluminum Core Radiator - No Frame - With Oil Coolers (Driver Side - Engine Oil Cooler with 7/8” Quick Connect Fittings on 11 ½” [292.1mm] centers and Passenger Side - Transmission Oil Cooler with 1 1/16” Quick Connect Fittings on 18” [457.2mm] centers) - With 1/2” Connection (Passenger Side top corner) and 5/8” Heater Return Connection.
DR-CG-2303-002-B-PT
Plastic Tank/ Aluminum Core Radiator - No Frame - With Oil Cooler (Passenger Side - Transmission Oil Cooler with 1 1/16” Quick Connect Fittings on 18” [457.2mm] centers) - With 1/2” Connection (Passenger Side top corner) and 5/8” Heater Return Connection.
DR-CG-2303-002-PT
Plastic Tank/ Aluminum Core Radiator - No Frame - No Oil Cooler - With 1/2” Connection (Passenger Side top corner) and 5/8” Heater Return Connection.
DR-CG-2305-002-B-PT
Plastic Tank/ Aluminum Core Radiator - No Frame - With Oil Coolers (Driver Side - Engine Oil Cooler with ¾” ORB Fittings on 7” [177.8mm] centers and Passenger Side - Transmission Oil Cooler with 1 1/16” ORB Fittings on 18” [457.2mm] centers) - With Filler Neck (Passenger Side top corner) and ¾” NPT Low Coolant Sensor Fitting.
DR-CG-2306-002-B-PT
Plastic Tank/ Aluminum Core Radiator - No Frame - With Oil Cooler (Passenger Side - Transmission Oil Cooler with ¾” ORB Fittings on 18” [457.2mm] centers) - With Filler Neck (Passenger Side top corner), Heater Return Connection and Plug, Sensor Probe Port, and ¾” NPT Low Coolant Sensor Fitting.
DR-CG-2306-002-PT
Plastic Tank/ Aluminum Core Radiator - No Frame - No Oil Cooler - With Filler Neck (Passenger Side top corner), Heater Return Connection and Plug, Sensor Probe Port, and ¾” NPT Low Coolant Sensor Fitting.
DR-CG-2307-002-B-PT
Plastic Tank/ Aluminum Core Radiator - No Frame - With Oil Coolers (Driver Side - Engine Oil Cooler with ¾” ORB Fittings on 7” [177.8mm] centers and Passenger Side - Transmission Oil Cooler with ¾” ORB Fittings on 18” [457.2mm] centers) - With Filler Neck (Passenger Side top corner), Sensor Probe Port, and ¾” NPT Low Coolant Sensor Fitting.
DR-CG-2308-002-B-PT
Plastic Tank/ Aluminum Core Radiator - No Frame - With Oil Coolers (Driver Side - Engine Oil Cooler with ¾” ORB Fittings on 7” [177.8mm] centers and Passenger Side - Transmission Oil Cooler with 1 1/16” ORB Fittings on 18” [457.2mm] centers) - With Filler Neck (Passenger Side top corner), Sensor Probe Port, and ¾” NPT Low Coolant Sensor Fitting..
DR-CG-2309-002-B-PT
Plastic Tank/ Aluminum Core Radiator - No Frame - With Oil Coolers (Driver Side - Engine Oil Cooler with ¾” ORB Fittings on 7” [177.8mm] centers and Passenger Side - Transmission Oil Cooler with 1 1/16” ORB Fittings on 18” [457.2mm] centers) - With Filler Neck (Passenger Side top corner), 1/8” NPT Low Coolant Sensor Fitting, and ¾” NPT Low Coolant Sensor Fitting. Currently unavailable.
DR-CG-2310-002-B-PT
Plastic Tank/ Aluminum Core Radiator - No Frame - With Oil Cooler (Driver Side - Engine Oil Cooler with ½“ Quick Connect Fittings on 10” [254.0mm] centers) - With Filler Neck (Passenger Side top corner), Low Coolant Sensor Fitting and Plug, ¾” NPT Low Coolant Sensor Fitting, and Ø1 5/16” [33.3mm] OD Inlet and Outlet Connections. Currently unavailable.
DR-CG-2311-002-B-PT
Plastic Tank/ Aluminum Core Radiator - No Frame - With Oil Cooler (Driver Side - Engine Oil Cooler with ½“ Quick Connect Fittings on 10” [254.0mm] centers) - With Filler Neck (Passenger Side top corner), Low Coolant Sensor Fitting and Plug, ¾” NPT Low Coolant Sensor Fitting, and Ø2” [50.8mm] OD Inlet and Outlet Connections. Currently unavailable.
DR-CG-2312-002-B-PT
Plastic Tank/ Aluminum Core Radiator - No Frame - With Oil Coolers (Driver Side - Engine Oil Cooler with 7/8” Quick Connect Fittings on 11 ½” [292.1mm] centers and Passenger Side - Transmission Oil Cooler with 7/8” Quick Connect Fittings on 11 ½” [292.1mm] centers) - With 1/2” Connection (Passenger Side top corner) and 5/8” Heater Return Connection.
DR-CG-2313-002-B-PT
Plastic Tank/ Aluminum Core Radiator - No Frame - With Oil Cooler (Passenger Side - Transmission Oil Cooler with 7/8” Quick Connect Fittings on 11 ½” [292.1mm] centers) - With 1/2” Connection (Passenger Side top corner) and 5/8” Heater Return Connection.
DR-CG-2314-002-B-PT
Plastic Tank/ Aluminum Core Radiator - No Frame - With Oil Cooler (Passenger Side - Transmission Oil Cooler with 1 1/16” Quick Connect Fittings on 18” [457.2mm] centers) - With 1/2” Connection (Passenger Side top corner) and 5/8” Heater Return Connection.
DR-CG-2314-002-PT
Plastic Tank/ Aluminum Core Radiator - No Frame - No Oil Cooler - With 1/2” Connection (Passenger Side top corner) and 5/8” Heater Return Connection.
DR-CG-2315-002-B-PT
Plastic Tank/ Aluminum Core Radiator - No Frame - With Oil Cooler (Driver Side - Engine Oil Cooler with 7/8” Quick Connect Fittings on 11 ½” [292.1mm] centers) - With 1/2” Connection (Passenger Side top corner) and 5/8” Heater Return Connection.
DR-CG-2316-002-B-PT
Plastic Tank/ Aluminum Core Radiator - No Frame - With Oil Cooler (Driver Side - Engine Oil Cooler with ¾” ORB Fittings on 7” [177.8mm] centers - With Filler Neck (Passenger Side top corner) and ¾” Heater Return Connection and Plug.
DR-CG-2317-002-B-PT
Plastic Tank/ Aluminum Core Radiator - No Frame - With Oil Coolers (Driver Side - Engine Oil Cooler with ¾” ORB Fittings on 7” [177.8mm] centers and Passenger Side - Transmission Oil Cooler with ¾” ORB Fittings on 18” [457.2mm] centers) - With Filler Neck (Passenger Side top corner), ¾” Heater Return Connection and Plug, 1/8” NPT Low Coolant Sensor Fitting, and ¾” NPSF to 1 1/16” UN Adapter Fittings.
DR-CG-2318-002-B-PT
Plastic Tank/ Aluminum Core Radiator - No Frame - With Oil Cooler (Passenger Side - Transmission Oil Cooler with ¾” ORB Fittings on 18” [457.2mm] centers) - With 1/2” Connection (Passenger Side top corner), ¾” Heater Return Connection and Plug, and ¾” NPSF to 1 1/16” UN Adapter Fittings.
DR-CG-2319-002-B-PT
Plastic Tank/ Aluminum Core Radiator - No Frame - With Oil Cooler (Passenger Side - Transmission Oil Cooler with ¾” ORB Fittings on 18” [457.2mm] centers) - With 1/2” Connection (Passenger Side top corner), ¾” Heater Return Connection and Plug, and ¾” NPSF to 1 1/16” UN Adapter Fittings.
DR-CG-2319-002-PT
Plastic Tank/ Aluminum Core Radiator - No Frame - No Oil Cooler - With 1/2” Connection (Passenger Side top corner) and ¾” Heater Return Connection and Plug.
DR-CG-2320-002-B-PT
Plastic Tank/ Aluminum Core Radiator - No Frame - With Oil Cooler (Driver Side - Engine Oil Cooler with ¾” ORB Fittings on 7” [177.8mm] centers - With Filler Neck (Passenger Side top corner) and ¾” Heater Return Connection and Plug.
DR-CG-2321-002-B-PT
Plastic Tank/ Aluminum Core Radiator - No Frame - With Oil Cooler (Passenger Side - Transmission Oil Cooler with ¾” ORB Fittings on 18” [457.2mm] centers) - With 1/2” Connection (Passenger Side top corner), ¾” Heater Return Connection and Plug, and ¾” NPSF to 1 1/16” UN Adapter Fittings.

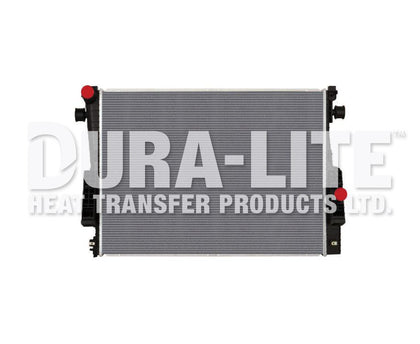

DR-FO-1611-002-B-PT
Plastic Tank/ Aluminum Core Radiator - No Frame - With Oil Cooler (on Grille Side).

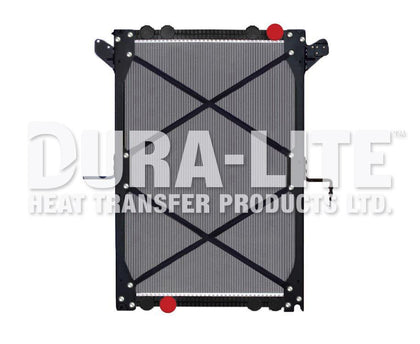

DR-FR-1302-001-PT
Plastic Tank/ Aluminum Core Radiator - With Frame - With top Tank Inlet Connection on the Passenger Side (5 11/16” [144.5mm] in from the end of Tank) and bottom Tank Outlet Connection on the Driver Side (9 3/16” [233.4mm] in from the end of Tank).
